Deerwell WRAP

We can provide

wraparound wrapping film

2019
Deerwell Agricultural Technology Development Co.,Ltd. was established in 2019.
10
We have 10 automatic production lines which can produce about 10,000 tons of cotton wrap film and 5,000 tons of other plastic films every year.
14,000 ㎡
Our headquarter is in Xinjiang Province where with an area of 14,000 ㎡ including 1 office building and 4 factory buildings.
10
With experienced experts team we have applied more than 10 patents of cotton wrap film for John Deere CP690 / CP770 harvester.

PRODUCT FEATURES

Our cotton packaging film boasts a combination of moderate rigidity and toughness, ensuring high durability.
The technical challenge is to control peeling strength in self-adhesive film production. Through extensive experimentation, we have successfully introduced a specialized material to regulate the peeling strength between the self-adhesive film and the base film, meeting the criteria for easy peel usability.
Through the adoption of self-adhesive auxiliaries and adjustments, our product can maintain self-adhesion in natural temperatures ranging from -20°C to 60°C.
The strength of the membrane is greatly enhanced by the use of special resins.
Deerwell 360° Protection
DEERWELL SYSTEM
The Deerwell portion concept:
Pre-cut wrap portions in order to avoid potential plastic fragments.

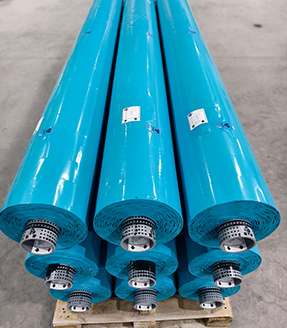

The Deerwell system separates & connects each individual wrap on a roll. 1 roll is made of 24 “ready to use” wraps.
Assures the next wrap is ready to be fed correctly.
RFID
Radio Frequency IDentification (RFID):

Every wrap includes 4 RFID tags allowing to track the individual module through harvest and processing, integrating with the electronic systems of John Deere CP770 | CP690 | CS690 cotton harvesters.

EARTH
Deerwell Structure:
We have adopted an interval coating glue method on the entire film, eliminating the need for dividing it into A & B films. This innovation addresses the issue of splicing fractures effectively.
Furthermore, each wrap features a break point separation, similar to the separation of a roll of toilet paper. This approach sets us apart from other companies, such as TAMA. In addition, our U-shaped sealing adhesive peeling method simplifies the production process and enhances processing speed.
The inner layer consists of a non-tacky film with specific properties designed to prevent cotton from adhering to the wrap, while the outer layer is a specially formulated film with tackiness on one side only. The combination of these two types of films guarantees the maintenance of the round module's uniformity during transportation and processing.

Firstly, the inner film will be wrapped with two and a half turns, followed by the application of the outer film, which will be glued to the inner film with one and a half turns to securely wrap the cotton bale.
WIND

Tapered Deerwell portion structure:

The tapered structure maximizes the durability of the tail in windy conditions.

Two types of specially designed adhesives

Secure the tail of a wrapped module in tough conditions and minimize the risk of cotton contamination.

WATER
Over the edge coverage:
Wrap goes over the edge holding tight the shoulders of the round module to minimize cotton waste and prevent exposing to the rain.
SUN
UV protection:
The film is UV protection and can last minimum 6 months outdoor.

CUSTOMERS & MARKETS

Our main market is USA, Brazil, Australia, Paraguay, Turkey, Argentina, as well as China mainland.
